- Size: dia50-500mm length2-5m
- Place of Origin: Shandong
- Brand Name: QUANCHENG
- Model Number: H13
- Weight: 1000.000 kg

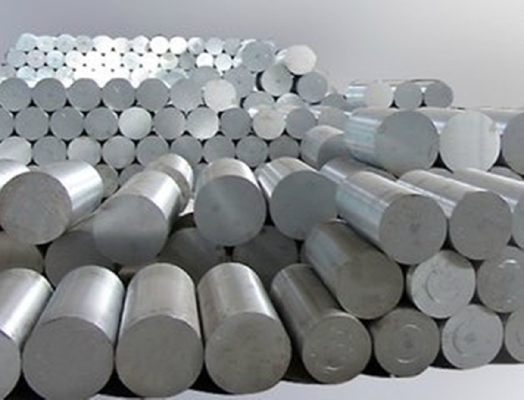

forged AISI H13 aluminum bar
1.Steel Grade:h13
2.Application: h13 is a kind of hot work die steel. With features of high endurance of hot and hardness, also excellent in toughness, thermal fatigue, wear resistance with normal temperature. It is always used in manufacturing kinds of mould.die cast mould for aluminum, copper, alloy.
3.Chemical Composition(%)
steel grade | C | Si | Mn | Cr | Mo | V |
AISI H13 | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
DIN 1.2344 | 0.37-0.42 | 0.90-1.20 | 0.30-0.50 | 4.80-5.50 | 1.20-1.50 | 0.90-1.10 |
JIS SKD61 | 0.32-0.42 | 0.80-1.20 | ≤0.50 | 4.50-5.50 | 1.00-1.50 | 0.80-1.20 |
4.Sizes Available(mm)

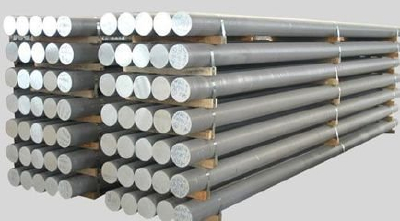

steel round | Cold work tool steel | Dia 50-500 | Length 2000-5000 |
Hot work tool steel | |||
Plastic tool steel | |||
steel plate | Cold work tool steel | Thickness 30-300 Width 100-600 | Length 2000-5000 |
Hot work tool steel | |||
Plastic tool steel |
5.Technical Route: EAF+LF+VD+ESR+FORGED+ANNEALED
6.Hardness: MAX 229HB
7.Tolerance: 0/+1mm for machined/turned surface, 0/+3mm for grinded/peeled surface
8.UT test: according to SEP 1921-84 Group C/c D/d class
9.Delivery term: 30 days
10.Payments: T/T,L/C,DP
(30% advance payment by T/T,balance before the shipment against shipping documents or irrevocable L/C at sight )
11. Our service : Your satisfaction is our ultimate pursuit
